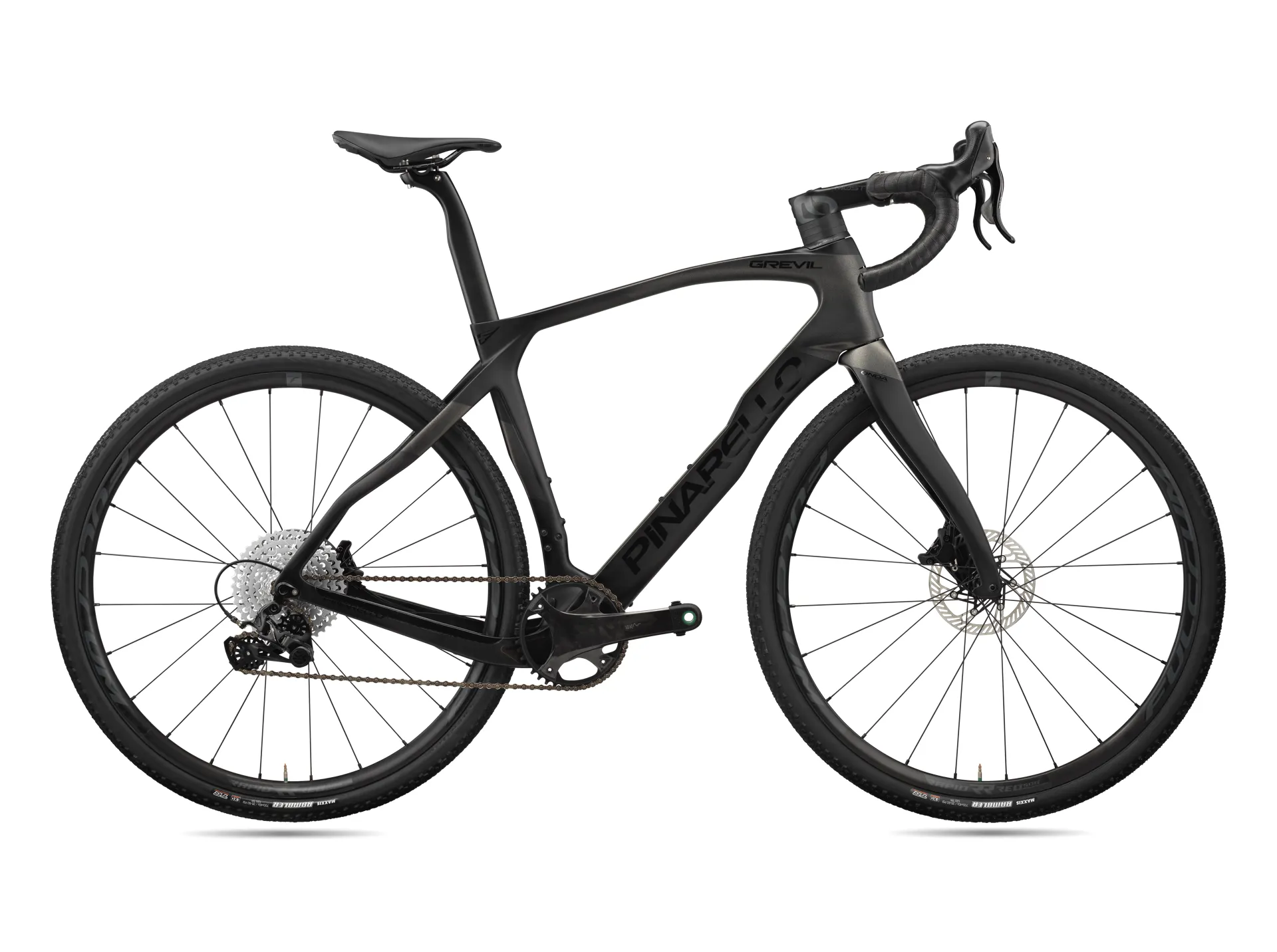

2023 Pinarello Grevil F Campagnolo Ekar Gravel Bike
2023 Pinarello Grevil F Campagnolo Ekar Gravel Bike
Pinarello

2023 Pinarello Grevil F Campagnolo Ekar Gravel Bike

£2,999.00 £4,500.00 33% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2023 Pinarello Grevil F Campagnolo Ekar Gravel Bike

Season:2023

Brand:Pinarello

Code:pinarellogrevilekar

FULL GAS EVERYWHERE

If you want to win a Gravel race, this is the bike for you. This is the off-road DOGMA.

The versatile GREVIL F is ready for anything. It can accommodate any kind of wheel or tyre combination, adapting to your every need, giving you the freedom to push the limits and compete with yourself.

Even off road, aerodynamics count. Every watt saved brings you closer to victory, so the GREVIL F’s design puts a major focus on aerodynamics and rigidity. If you want to triumph on every terrain, this is the bike for you. This is the off-road DOGMA.

AN AEROGRAVEL BIKE?

Aerodynamics always count. Gravel races often exceed 200km, with speeds reaching 70km/h, every watt saved brings us a little bit closer to victory.

FORKFLAP

Fork Flap: Stabilises the flow of air on the front end and greatly improves the aerodynamic penetration coefficient.

FLAT BACKPROFILE

Derived from the DOGMA, this profile reduces aerodynamic drag on the tube, especially when there are bottles present.

TICR

The complete integration of all cables offers aerodynamic improvement and allows for greater ease when loading bags.

GRAVELGEOMETRY

Differentiated geometry and rake ensures the same trail and the same control across all frame sizes.

- Reach and stack: Compared to a traditional road bike, the GREVIL F has shorter reach and higher stack to create an elongated position, offering better comfort and better handling

- An increased seat tube angle allows for greater wheel clearance

- Modified fork angle and Rake ensures better handling and riding comfort

- Chain stays: Measuring between 422-425mm. This provides the best compromise between responsiveness and comfort. Compatible with 700c or 650b wheels.

TWINARMS

Maximum energy transmission and vibration absorption

The right chain stay is rotated downwards, as is the right seat stay, to have both rear triangles symmetrical with a uniform response to pedal strokes. Different connection points for the seat stays allows the seat tube to absorb impacts coming from the rear wheel in a more uniform way.

T700 CARBON FIBER

For the GREVIL F, the carbon fiber used is T700 from Toray, the best carbon fiber manufacturer in the world. We combine the perfect mix of different types of HM (high modulus) and HT (high strength) fibers to achieve the ultimate balance of rigidity and vibration absorption.

Technical Information
FRAME
TorayCa T700 UD, TiCR™ cable routing, Italian BB

FORK
grevil onda fork with forkflap™, tapered head tube

CRANKSET AND CHAINRINGS
Campagnolo Ekar 13s 1X

REAR DERAILLEUR
Campagnolo Ekar 13S

CASSETTE
Campagnolo Ekar 13S
CHAIN
Campagnolo Ekar C13 C-link 13s

BOTTOM BRACKET
Campagnolo Ekar 13S
FRONT BRAKE DISC
Campagnolo Ekar Ergopower 2 pistons, 160mm rotor

REAR BRAKE DISC
Campagnolo Ekar Ergopower 2 pistons, 160mm rotor

HANDLEBAR
Jaguar GR Di2

STEM
Tiger Aero Alu TiCR

BAR TAPE
MOST Ultragrip Evo 3mm - Black

SADDLE
Most Lynx Aircross FEC Alloy Large 145mm

SEATPOST
Pinarello Aero Seatpost
WHEELSET DISC
Fulcrum Rapid Red 500

AXLES DISC
MOST Ultralight Custom Axle 12x100 & 12x142, Tool-free removal
