Merida`s heartland has always been bombproof aluminium hardtails.
Merida`s heartland has always been bombproof aluminium hardtails.
Merida

Merida Big Seven 20

£450.00 £600.00 25% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

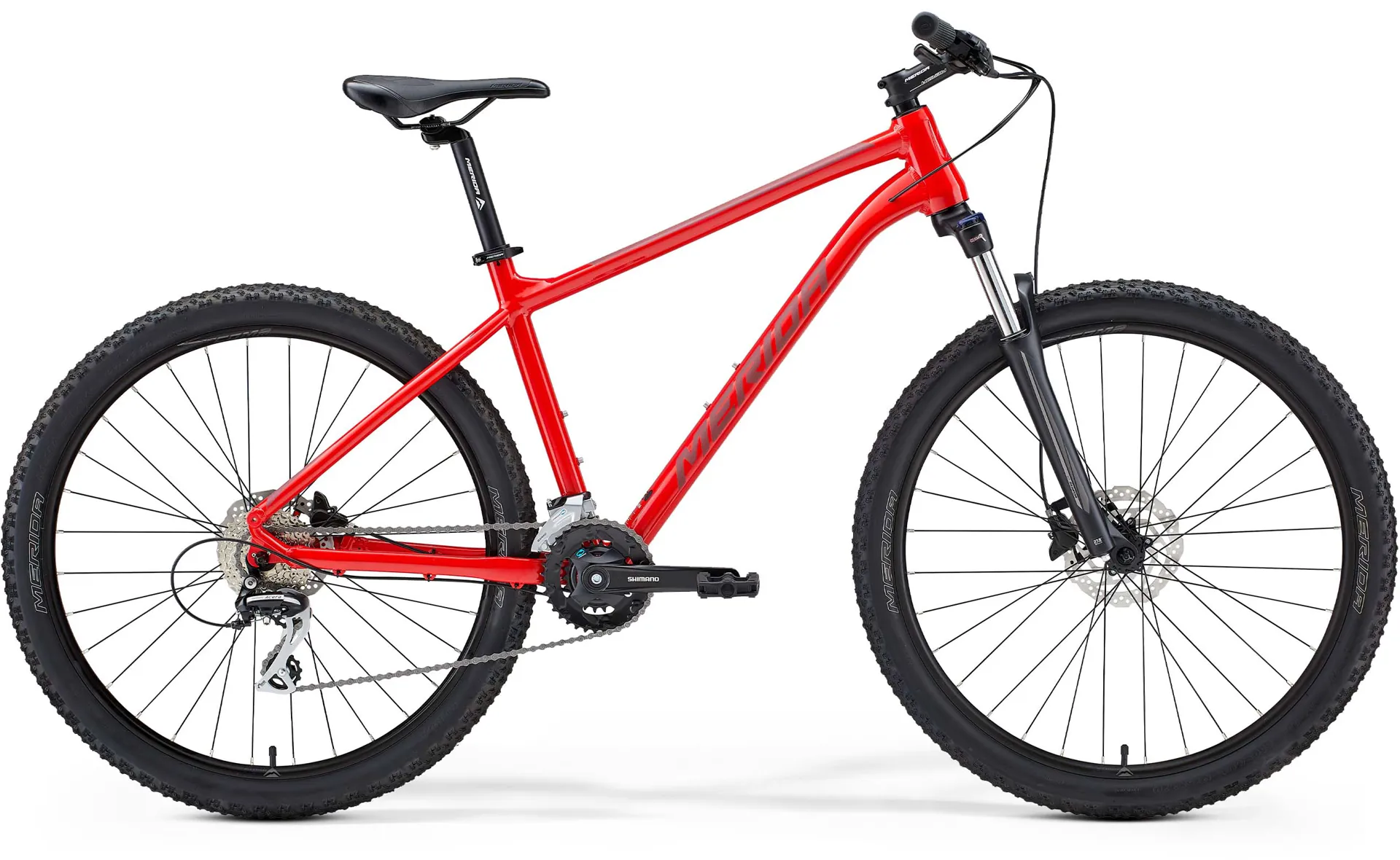

Merida Big Seven 20

Season:2021

Brand:Merida

Code:P-M130

Merida`s heartland has always been bombproof aluminium hardtails.

Here they use their sophisticated TFS frame with the latest technology, full internal cable routing, tapered headtube and inboard disc brake mounts. Perfectly matching the modern frame they have gone for a 2 x 8 set up and retain the focus on using Shimano components wherever possible.

Features:
  • 650b hardtail with sophisticated TFS frame
  • 2 x 8 transmission
  • lockout fork
  • Shimano hubs and chainset
Technical Information
  • Frame
    TFS - 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands.
  • Fork
    Suntour XCT30 HLO; Coil; 100mm travel; Lockout.
  • Headset
    Merida M2345
  • Stem
    Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length : 70 mm-XS/S, 80 mm-M, 90 mm-L
  • Handlebar
    Merida CC; aluminium; 690mm wide; 15mm rise
  • Grip
    Merida EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
  • Brake Calipers
    Front: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor Rear: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
  • Tyres
    Front: Merida K1080; 27.5 x 2.2; wire bead Rear: Merida K1080; 27.5 x 2.2; wire bead
  • Wheel Size
    27.5
  • Wheels
    Rims: Merida CC; 17mm inner rim width; Material: aluminium Spokes: Black steel Front Hub: Shimano TX505; 100x9mm; 32 spokes; Centerlock Rear Hub: Shimano TX505; 135x9mm; 32 spokes; Centerlock
  • Speeds
    16
  • Front Derailleur
    Shimano FD-M315-TS
  • Rear Derailleur
    Shimano RD-M360
  • Shift Levers
    Shimano ST-EF505
  • Chain
    Sunrace M84
  • Cassette
    Sunrace CSM668; 11-32 teeth; 8 speed
  • Chainset
    Shimano FC-M315-2; 36-22 chainwheel with 170mm - XS/S, 175mm - M/L length crank
  • Bottom Bracket
    FSA TH-7420ST-W, Cartridge Bearing
  • Pedals
    VP Components, VPE-891
  • Saddle
    Merida Sport comfort
  • Seat Post
    Merida CC; aluminium; 30.9mm diameter; 15mm lay back
