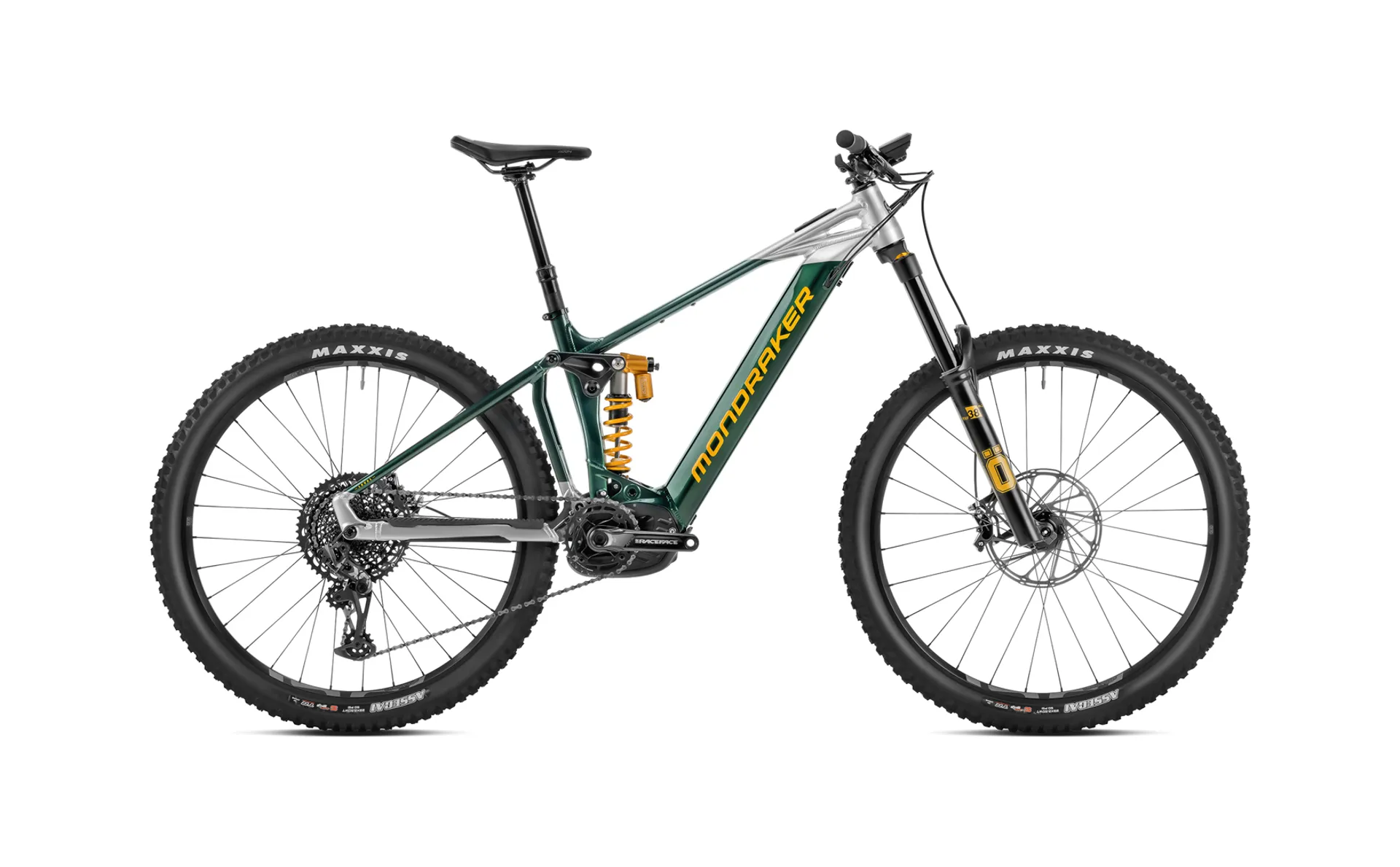

Mondraker Level XR 2023

Season:2023

Brand:Mondraker

Code:010.233XR

For 2023 we’ve launched a new model in the LEVEL range, the XR. With a 180mm fork up front followed by 170mm travel at the rear, the LEVEL XR is the most radical super enduro eMTB animal in the family. The Bosch Performance Line CX G4 Smart System motor’s comes paired with a KIOX 300 display, the new 3-button Mini Remote control (with wireless Bluetooth operation) and the new System Controller integrated into the top tube. The 750Wh battery simply lets you to enjoy more range, whatever your plan of attack. The LEVEL XR comes as stock with Öhlins suspension of course, an RFX38 M.2 fork and a TTX22M coil shock. SRAM’s X01 Eagle/GX Eagle drivetrain puts the power down, e*thirteen’s E*Spec Plus wheels keep things rolling and SRAM’s Code RSC brakes stop you on a dime with ON/OFF Components providing the cockpit and contact points.

Technical Information

Frame
Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
Öhlins TTX22M 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings
C10 compression, R35 rebound. Spring rate: S size 251 lbs, M size 297 lbs, L size 343 lbs, XL size 411 lbs
Fork
Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Desert, 1lock-on, 135mm
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
Sram Code RSC, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims
e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes
Spokes
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset
Race Face Aeffect ebike, 165mm
Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
Sram GX Eagle, 12s, Powerlock
Rear derrailleur
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Casette
Sram XG-1275, 10-52T, 12s
Derailleur hanger
Mondraker M068
Weight
25,8 kg
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line CX (25km/h) Smart System
Battery
Bosch Powertube 750Wh
