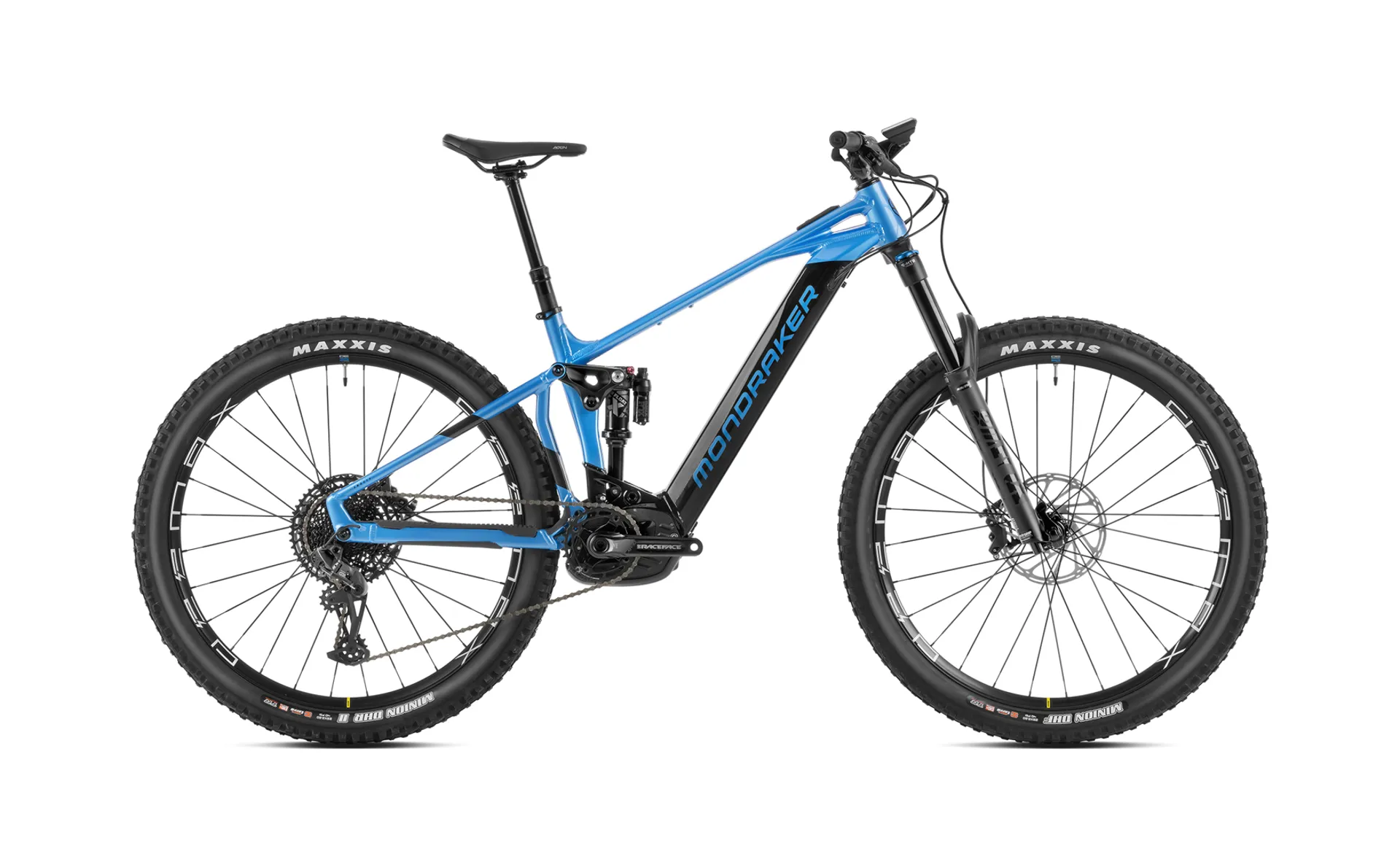

Mondraker Crafty R in Blue/Black Electric Mountain Bike
Mondraker Crafty R in Blue/Black Electric Mountain Bike
Mondraker

Mondraker Crafty R in Blue/Black 2023

£3,799.00 £5,999.00 36% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Mondraker Crafty R in Blue/Black 2023

Season:2023

Brand:Mondraker

Code:010.233CRBB

Available in three different colors, the CRAFTY R rocks our ZERO suspension system kinematics which provides a super supple suspension action while at the same time not wasting any energy in the process. It’s one of our priorities when it comes to our bikes. What’s more, the bike’s really agile on the trail which is much-needed in an eMTB. It all adds up to maximum fun and excellent value for money. It comes complete with Bosch’s Performance CX Line Smart Control motor, the all-new Mini Remote control and integrated System Controller. The CRAFTY R is the most competitive total enduro ebike out there.
Technical Information
  • frame

    Frame

    Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    shock settings

    Shock settings

    medium compression, medium rebound, air volume spacer 0.2

  • fork

    Fork

    Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

    headset

    Headset

    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

  • stem

    Stem

    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    handlebar

    Handlebar

    Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Desert, 1lock-on, 135mm

    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

  • saddle

    Saddle

    FIZIK Terra Aidon X5 145mm

    front brake

    Front brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    Sram DB8, tool reach adjust

  • rims

    Rims

    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

  • crankset

    Crankset

    Race Face Aeffect ebike, 165mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram SX Eagle, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

  • shift levers

    Shift levers

    Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

    casette

    Casette

    Sram PG-1210, 11-50T, 12s

  • derailleur hanger

    Derailleur hanger

    Mondraker M068

    weight

    Weight

    25,6 kg

  • display

    Display

    Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

    motor

    Motor

    Bosch Performance Line CX (25km/h) Smart System

  • battery

    Battery

    Bosch Powertube 750Wh
