ENGINE
Bosch, Performance CX Smart System, 250 W, 85 Nm

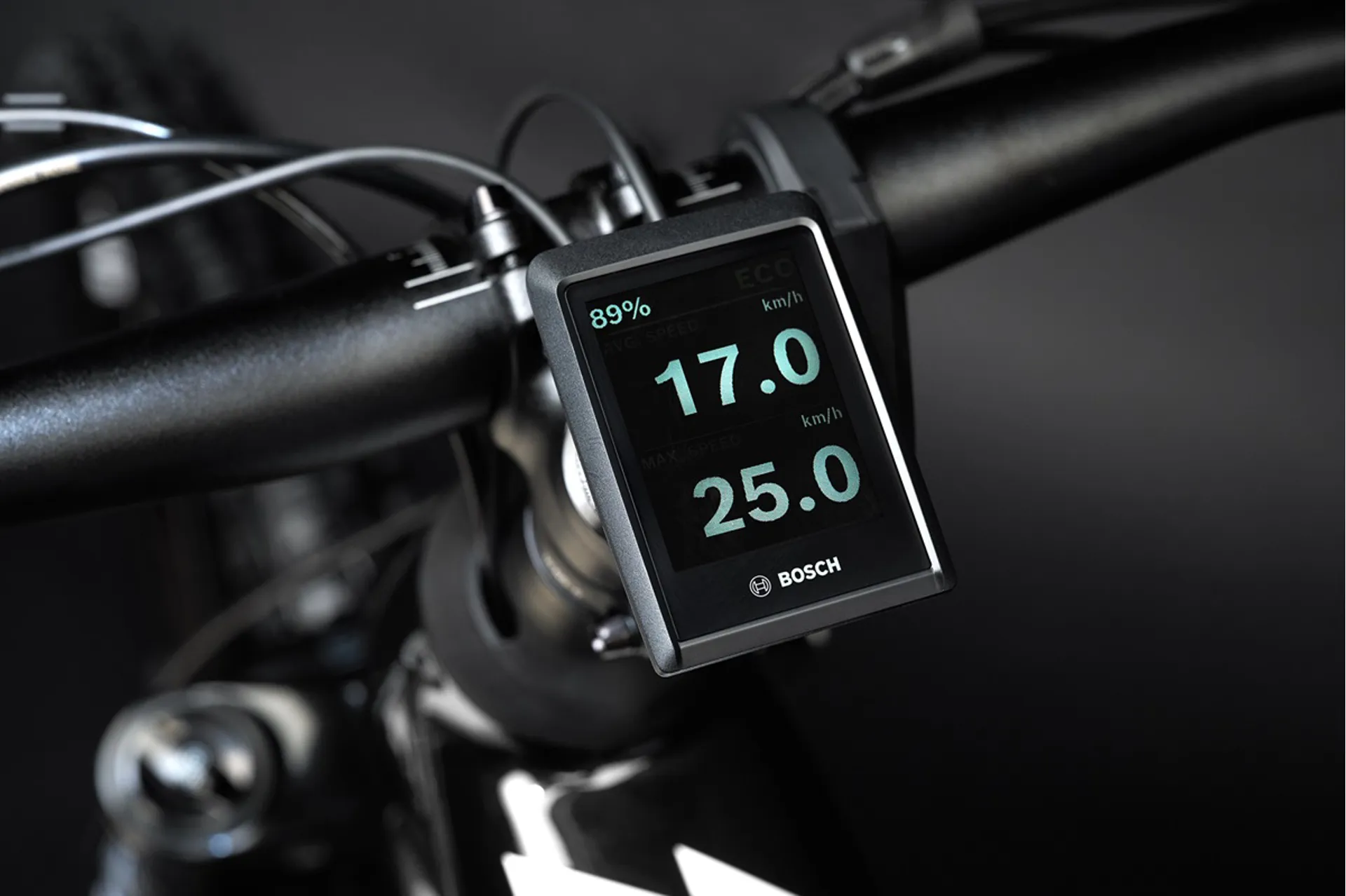

DISPLAY
Bosch, Kiox 300 + LED Remote
BATTERY
Bosch, PowerTube, 750 Wh
FRAME FAMILY
Haibike, AllMtn Bosch CF Smart System, Carbon/aluminium

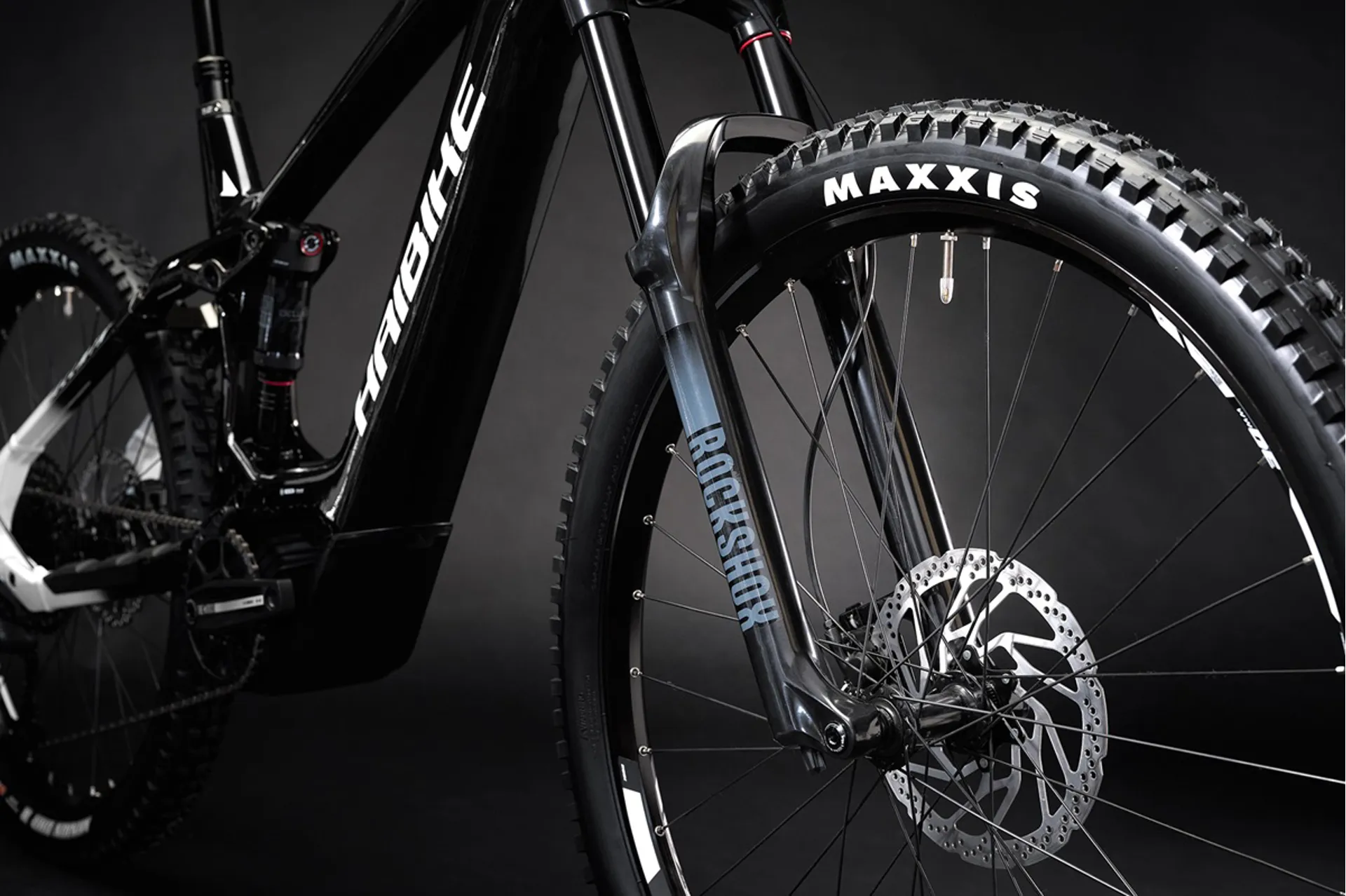

FORK
RockShox, 35 Gold RL, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

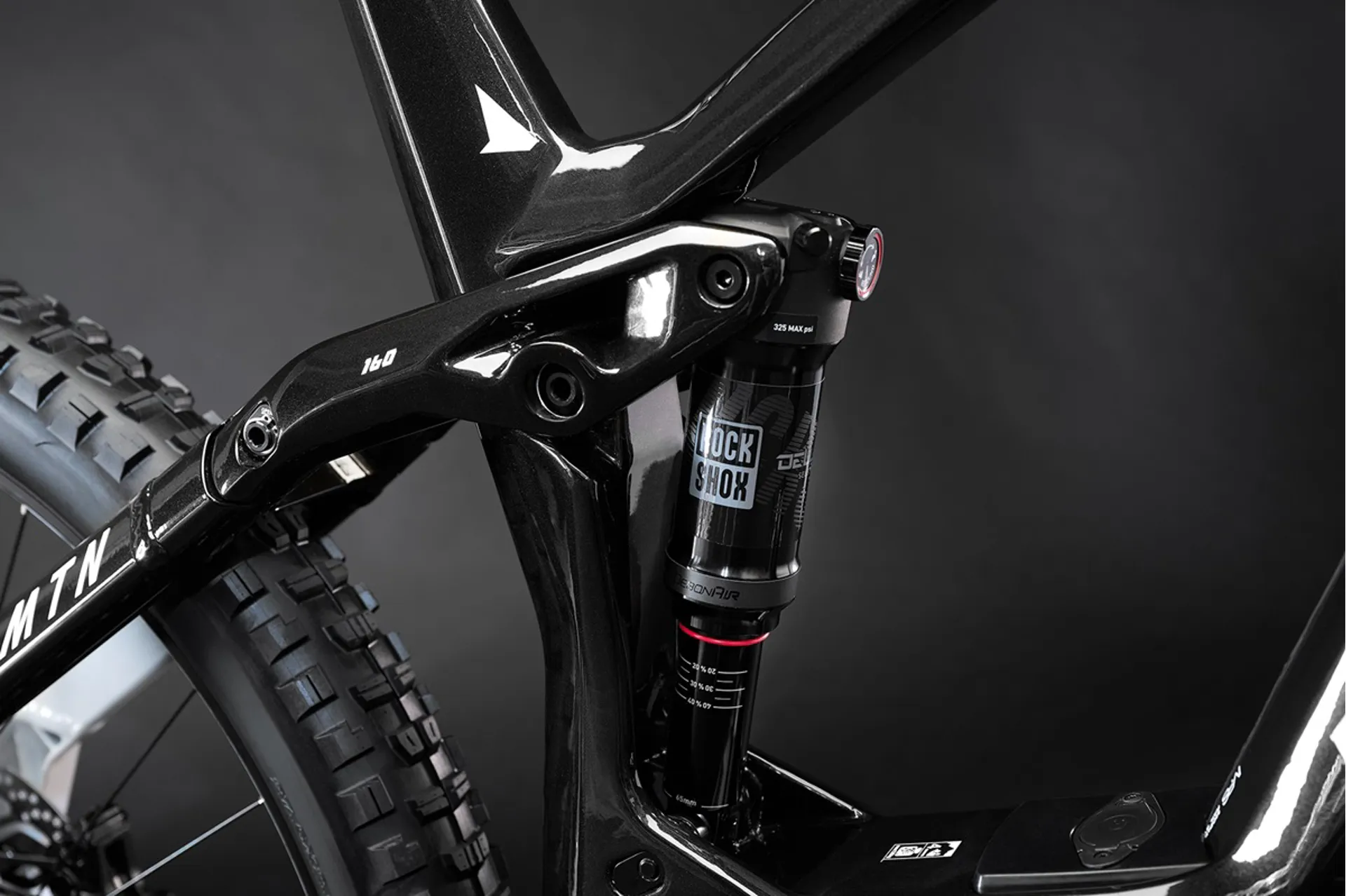

DAMPER
RockShox, Deluxe Select Plus, Air, Trunnion Mount
CRANK ARM
Haibike Components, The Crank ++, Aluminium
BRAKE (FRONT)
Shimano, MT420, 4-piston disc brake
BRAKE (REAR)
Shimano, MT420, 4-piston disc brake
TUBE
Presta valve
RIM
Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium
CLAMPING RING
Internal hexagon, 34.9 mm
REAR DERAILLEUR
Sram, SX Eagle
SHIFT LEVER
Sram, SX Eagle, Trigger switch
BOTTOM BRACKET
integrated in the motor
SPROCKET
Sram, Eagle PG1210, 11 - 50 teeth
CHAIN
Sram, SX Eagle
CHAINRING
Sram, Aluminium, 36 teeth
CHAIN GUIDE
Nylon directmount
BRAKE LEVER
Shimano, MT401, Aluminium
BRAKE DISC (FRONT)
Shimano, RT30-L, 203 mm
BRAKE DISC (REAR)
Shimano, RT EM300L, 203 mm

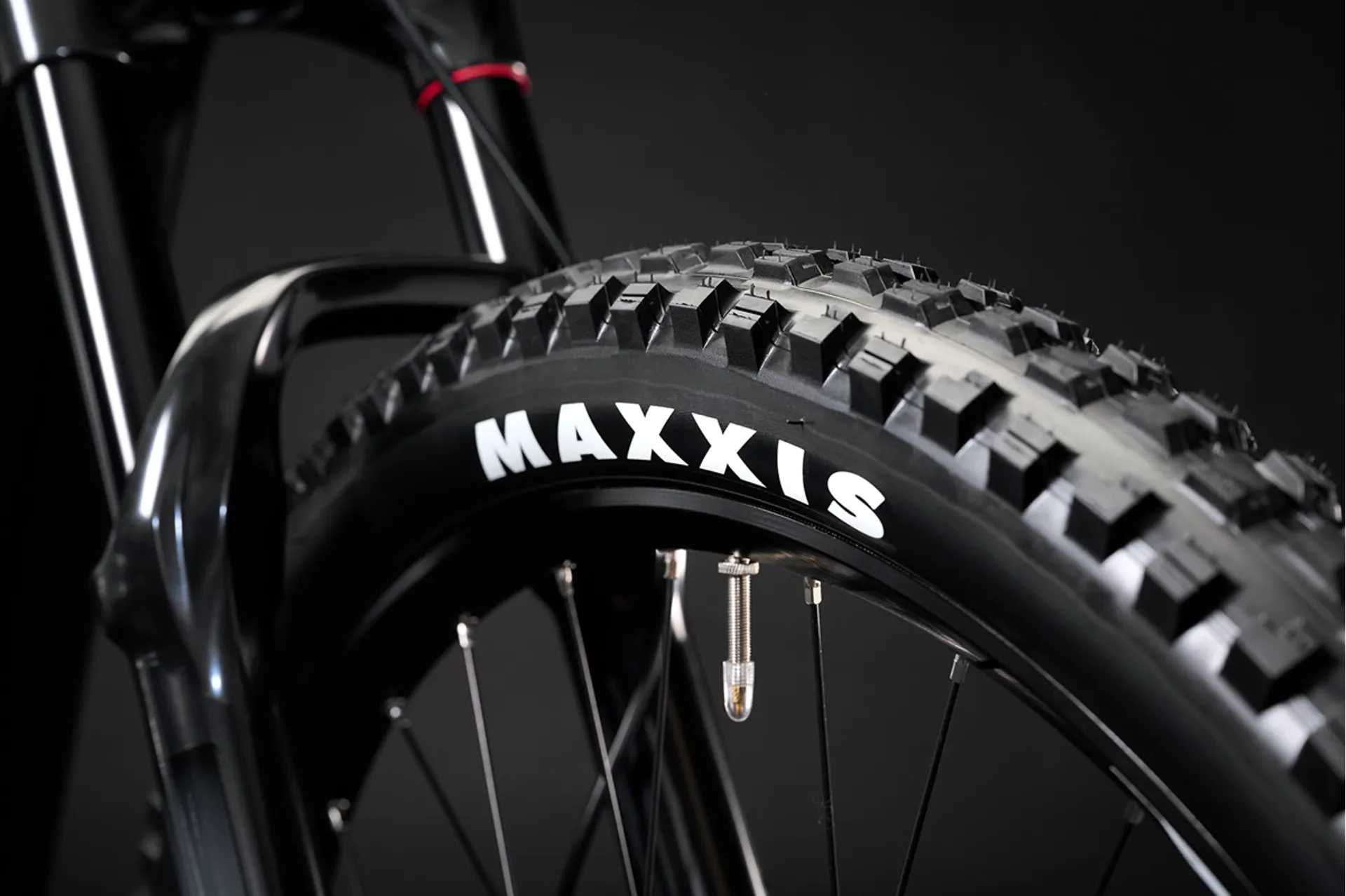

TYRE
Maxxis, Minion DHF II, 65-622, 29 x 2.5 inch
FRONT WHEEL HUB
Shimano, MT400-B, Centerlock
REAR WHEEL HUB
Shimano, MT400-B, Centerlock
SPOKES
Sapim, Leader
HANDLEBAR
Haibike Components, TheBar ++, 780 mm
GRIPS
Haibike, MTB grips
STEM
Alu, A-head, 31.8 mm
HEADSET
Acros, Cable integration, Aluminium
SADDLE
fi'zi:k, Terra Aidon X5-160
SEAT POST
Dropper-Post Remote 31.6, Aluminium, Telescope, 31.6 mm
PEDALS
Freeridepedal, Aluminium, with Reflector
PERMITTED TOTAL WEIGHT
120.0 kg
TYRE (REAR)
Maxxis, Minion DHR II, 71-584, 27.5 x 2.8 inch
RIM (REAR)
Rodi, Tryp 35, Aluminium, With Eyelets, Double Wall,
